When it comes to night-time observation, long-range reconnaissance or monitoring in complex environments, infrared thermal imaging technology is now the undisputed mainstay. Dongguan Xintai Instrument Co., Ltd., as an outstanding provider of infrared thermal imaging and instrumentation solutions, has consistently pursued cutting-edge technology. Its newly launched HT-C600 outdoor thermal imager integrates multiple advanced technologies, redefining the standards for professional outdoor observation.
Core technology: not only seeing far, but also pinpointing accurately
One of the core strengths of the Xintai Instrument HT-C600 lies in its exceptional long-range detection and precise positioning capabilities. Equipped with a high-performance laser ranging system, the product boasts an effective measurement range extending up to 2500 metres. It delivers outstanding accuracy within ±1 metre at distances under 400 metres and achieves 0.4% precision beyond 400 metres, ensuring precise acquisition of medium-to-long-range target distances. Moreover, the HT-C600 incorporates an electronic compass and supports dual-mode GPS/BeiDou positioning, enabling real-time display of azimuth and geographic location data. This intelligent combination of range measurement and positioning allows users to swiftly and accurately ascertain target location and distance—whether conducting fire patrols across vast woodlands or executing reconnaissance missions in complex tactical environments—delivering true all-weather, all-terrain precision observation.
Superior imaging: Delicate picture quality, with dual-light fusion delivering enhanced clarity.
For thermal imaging equipment, image quality is paramount. The Xintai Instrument HT-C600 employs a high-performance uncooled infrared detector with 12μm pixel size and a Noise Equivalent Temperature Difference (NETD) of ≤40mK, ensuring exceptional thermal sensitivity. Even in adverse conditions such as rain, fog, or extreme cold, it captures rich detail without image blurring. Equipped with a 50mm professional telephoto lens and an F1.0 aperture, it significantly enhances light intake and detection range. Its innovative dual-spectrum fusion technology intelligently overlays infrared thermal imagery with low-light visual data, complementing each other's strengths. Combined with a 0.39-inch OLED display boasting 1024×768 resolution, the resulting imagery is not only finely detailed and high-contrast but also effectively penetrates darkness, foliage, and light mist. This renders concealed targets impossible to hide, delivering an exceptional visual experience for the user.
Flexible Scenarios: Multiple modes, switch at will
To meet the diverse requirements of patrol enforcement, target observation, emergency search and rescue, and forest fire prevention, the Xintai Instrument HT-C600 offers exceptional operational flexibility. The device supports four display modes: infrared, low-light, dual-spectrum fusion, and picture-in-picture, allowing seamless switching based on ambient light conditions and observation needs. Additionally, it incorporates five built-in pseudo-colour palettes: white-hot, black-hot, rainbow, iron-red, and cool-colour. Different colour modes accentuate distinct temperature variations: the “White Hot” mode facilitates rapid detection of high-temperature targets, while the “Rainbow” mode is better suited for observing subtle temperature gradient changes. Coupled with 1x, 2x, and 4x digital zoom functionality, users can flexibly adjust their field of view, seamlessly transitioning from wide-area searches to detailed scrutiny. This significantly enhances adaptability in complex, dynamic scenarios, substantially boosting operational efficiency.

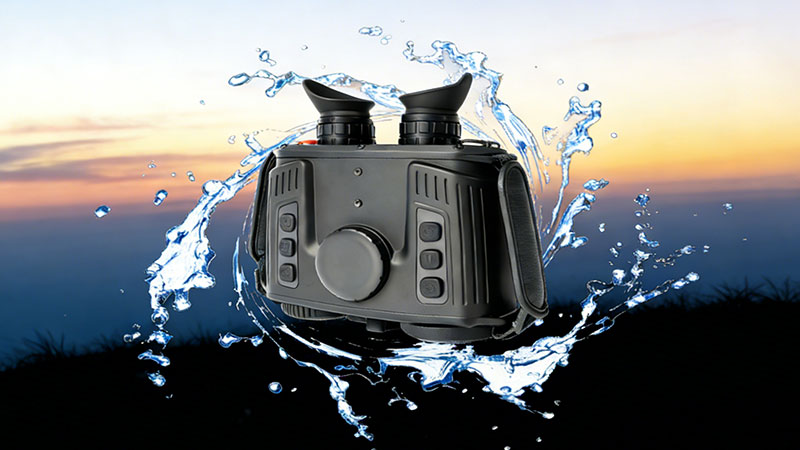

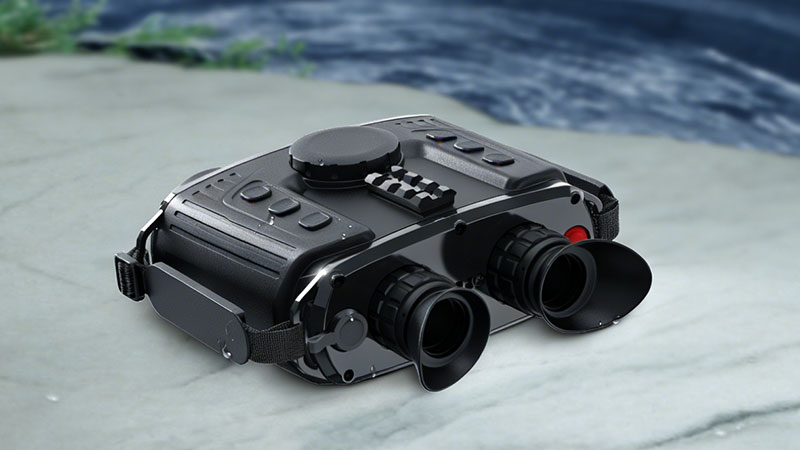

The HT-C600 thermal imager developed by Dongguan Xintai Instrument Co., Ltd. is not merely a precision observation tool, but a technological marvel integrating ultra-long-range distance measurement, intelligent positioning, high-definition fusion imaging, and user-centric interactive design. It embodies Xintai Instrument's unwavering commitment to the product philosophy of ‘powerful performance, outstanding image quality, and flexible application’. From its rugged aluminium alloy chassis and dependable IP54/66 protection rating to its impressive six-hour battery life, every detail is engineered to provide outdoor professionals, law enforcement officers and explorers with a reliable ‘second pair of eyes’. Choosing the Xintai HT-C600 means equipping yourself with an ‘eagle eye’ that delivers clear, precise and dependable vision in any light, weather or environment.
